Repair story · Spring Valley, NY

GE Café induction cooktop completely dead, oven still working — Spring Valley, NY

All four zones went at the same moment, which sounds like the worst case and usually means the opposite: one part they all depend on.

Appliance
Slide-in induction range
Brand
GE Café
Location
Spring Valley, NY
Symptom
No response from any induction zone; oven working normally
Cause
Induction generator board failed
Repair
Generator board replaced, every zone tested under a pan before we left

The call

The cooktop had stopped completely. Not one weak zone, not one that cut out under load — nothing on the glass responded at all, while the oven underneath went on baking as if nothing had happened.

What we found

Induction does not heat the glass. Under each zone sits a coil, and a generator board converts household power into the high-frequency current those coils run on; the pan itself is what gets hot. So when every zone dies at the same moment and the oven is untouched, the coils are rarely the answer. Something they all share is.

We connected the GE service diagnostic tool — the manufacturer's own instrument, which talks to the range's boards and reads back what they report rather than leaving us to infer it from the outside. On a machine at this price that is the difference between knowing and guessing. The induction generator was not answering.

Lifting the cooktop confirmed it. Four coils in place, wiring intact, no scorching anywhere, and the generator board sitting in its tray between them — a half-bridge unit that drives the zones in pairs. It had failed outright, and with it went the entire cooking surface at once.

The fix

Fitted a new generator board, GE part 301D1780G005, and put the harness back the way the factory routes it. Induction wiring runs close to the coils and the heat shielding is there for a reason; a board swap done quickly and a board swap done properly look identical on the day and different a year later.

Then we tested it the only way that counts — a pan on the glass, every zone in turn, low through Power Boil, watching each one hold and shut off cleanly. All four came back.

Worth saying for anyone with an induction range: a cooktop that dies all at once while the oven still works is not the disaster it looks like. It usually points at one shared part, and that is a far better outcome than zones failing one by one.

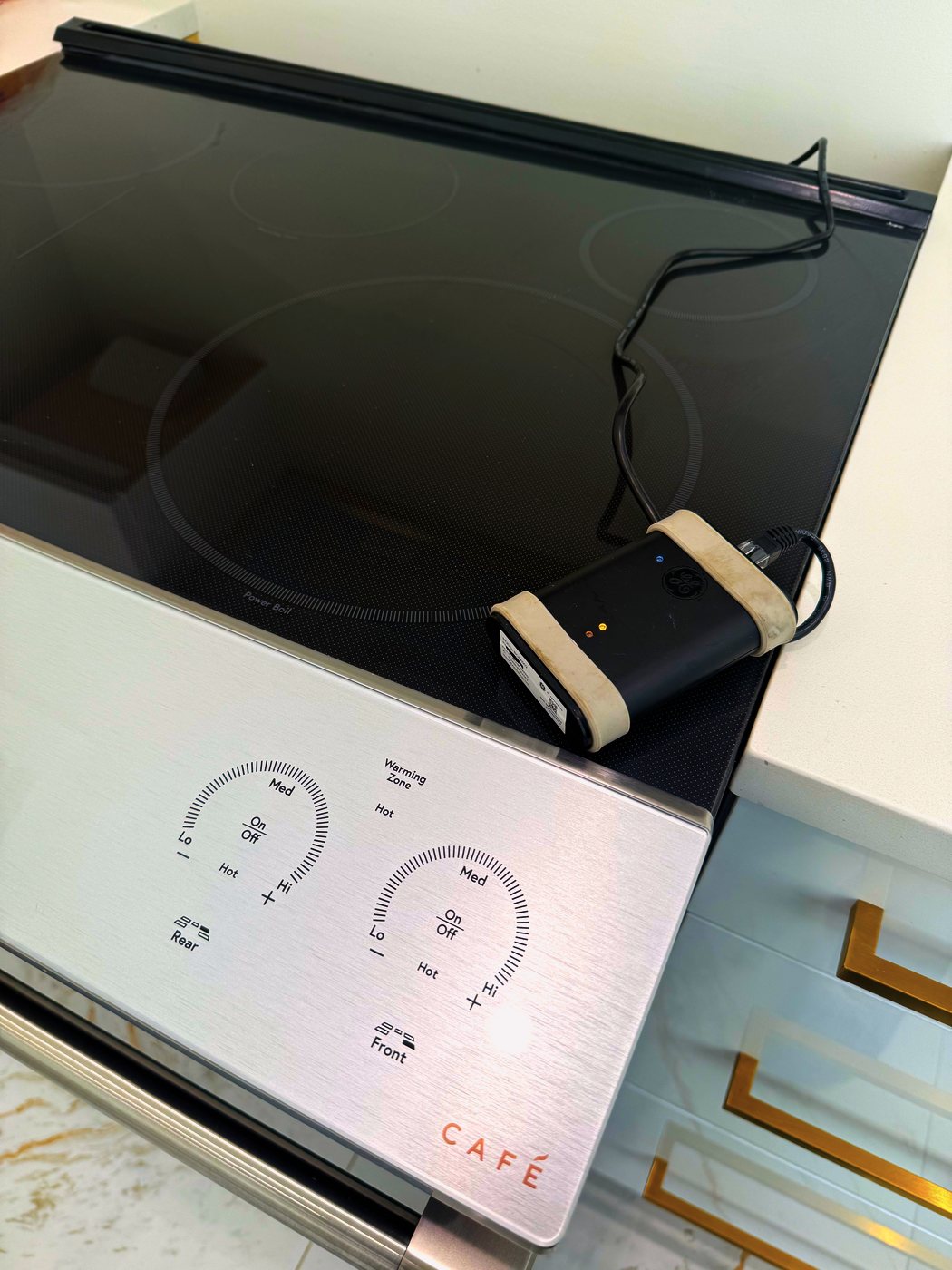

The GE service diagnostic tool on the glass. It reads what the range's own boards report, instead of leaving us to guess from the outside
The GE service diagnostic tool on the glass. It reads what the range's own boards report, instead of leaving us to guess from the outside

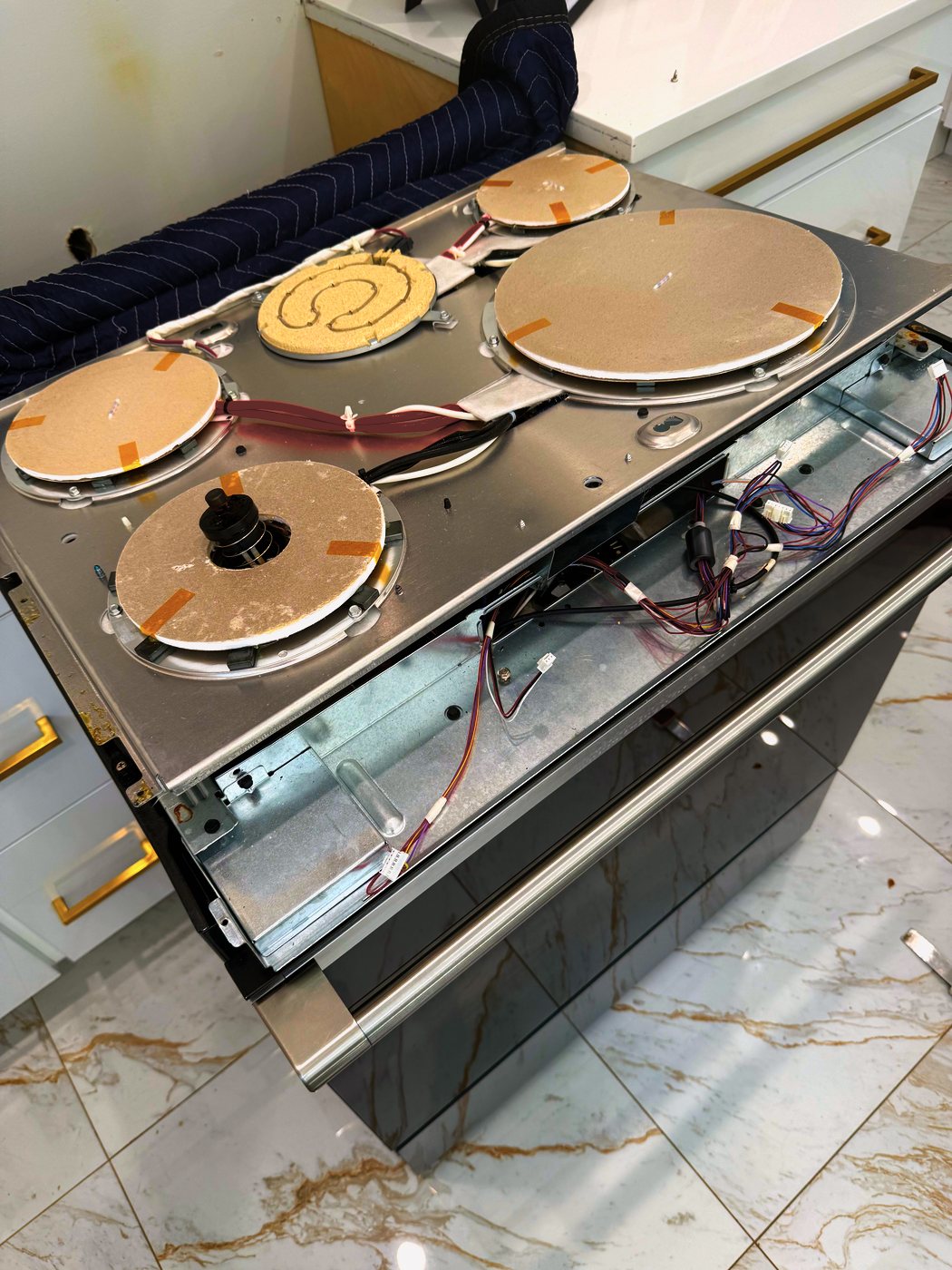

Cooktop lifted: four induction coils, wiring intact, nothing scorched. The fault was not out here
Cooktop lifted: four induction coils, wiring intact, nothing scorched. The fault was not out here

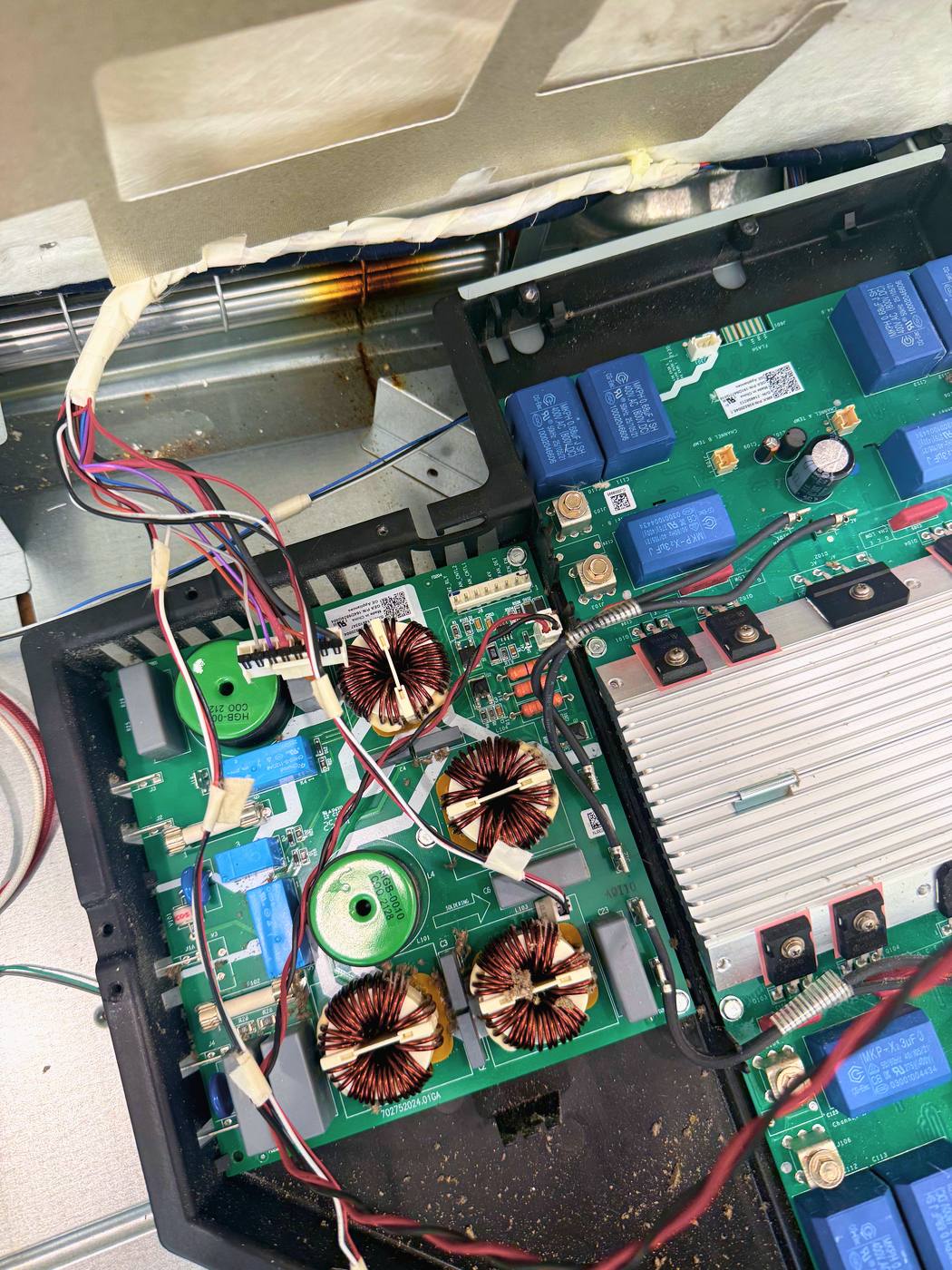

The generator board in its tray between the coils — the one part every zone on the cooktop depends on
The generator board in its tray between the coils — the one part every zone on the cooktop depends on

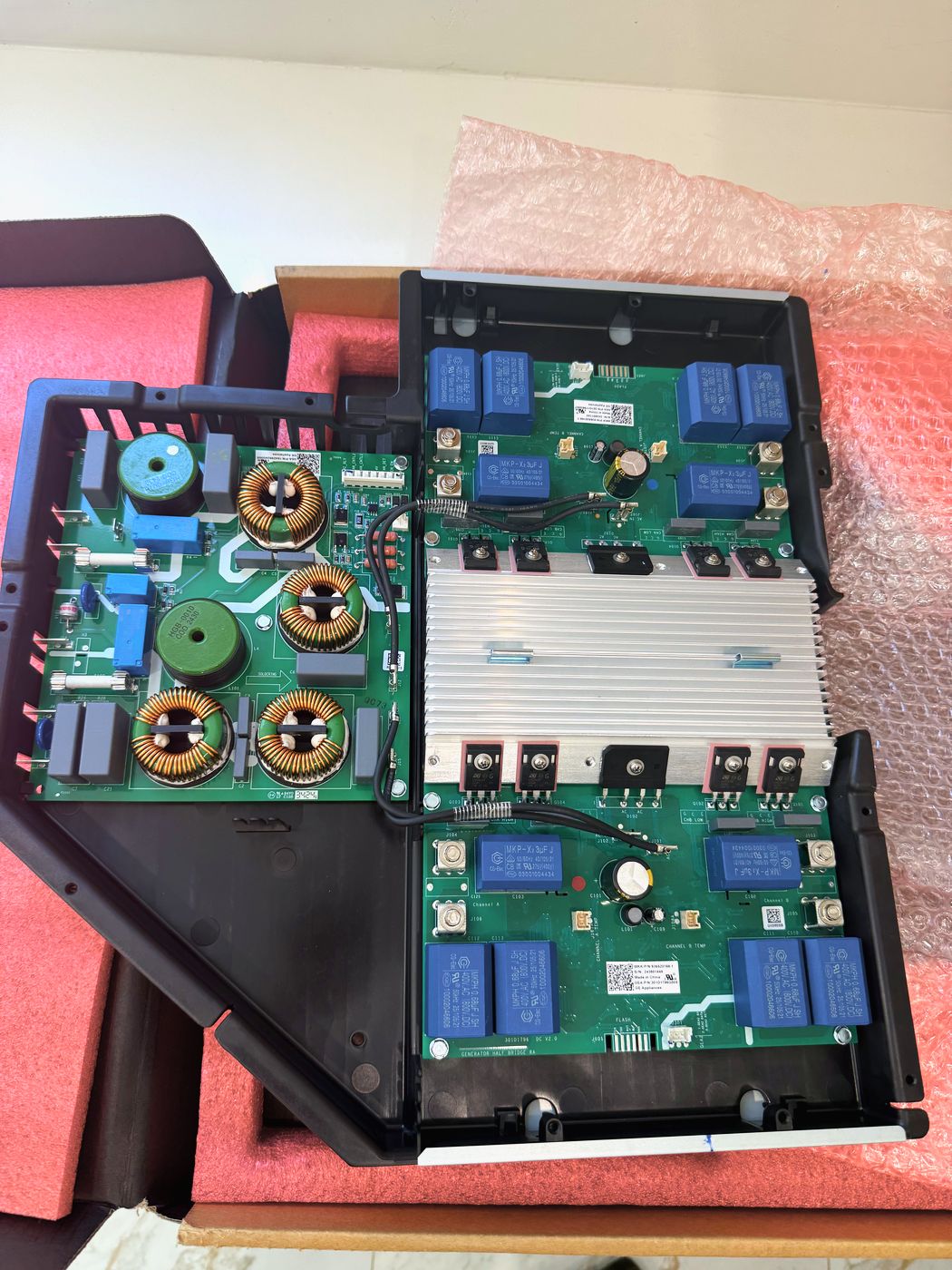

The replacement board, GE part 301D1780G005, out of the box before fitting
The replacement board, GE part 301D1780G005, out of the box before fitting

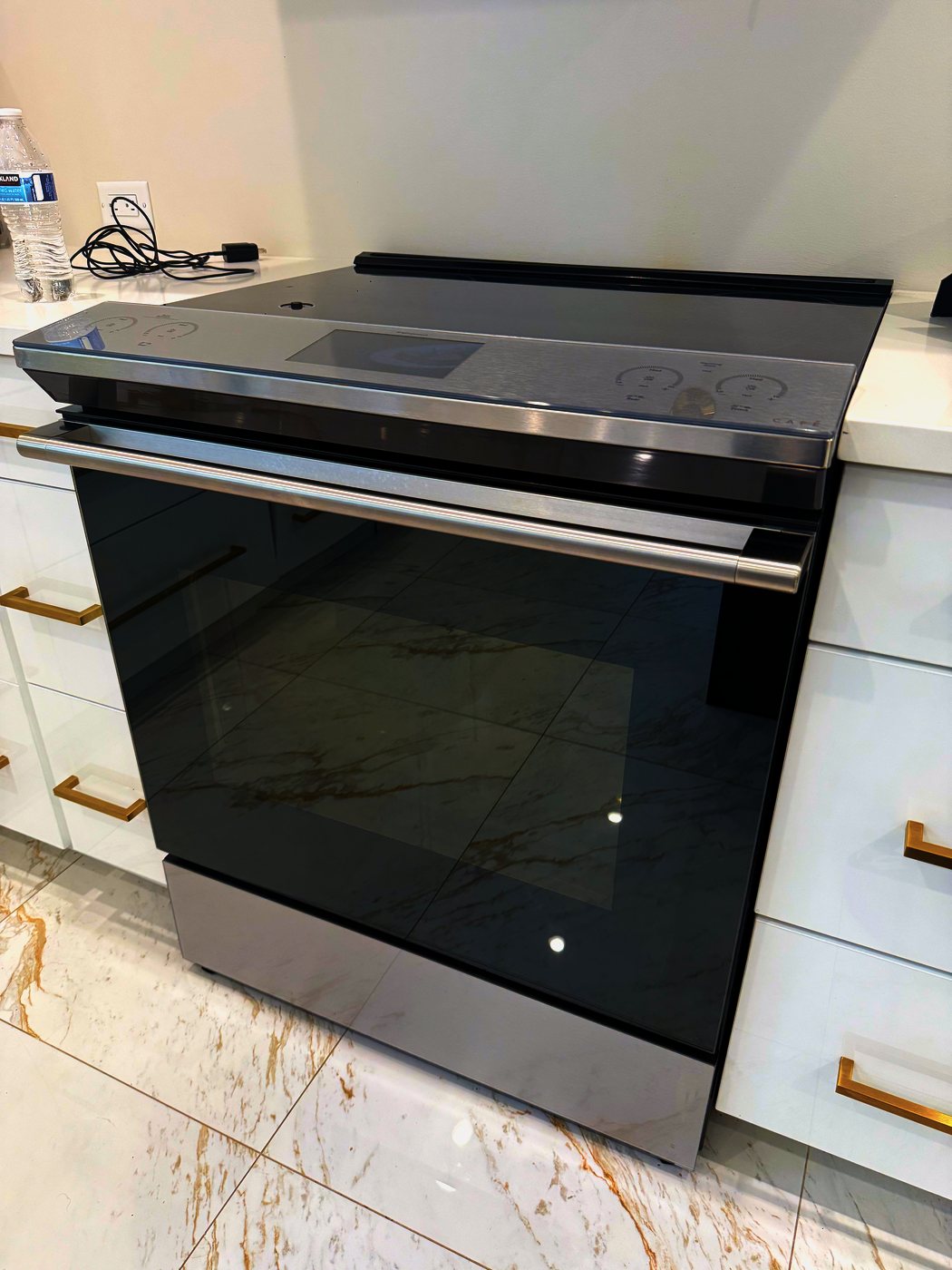

Back together, all four zones working. Tested with a pan on each one, low through Power Boil, before we left
Back together, all four zones working. Tested with a pan on each one, low through Power Boil, before we left
