Alto-Shaam CTC10-20E combi oven completely dead — Glen Rock, NJ
No display, no lights, no response to the power button. A shorted board had taken the power supply with it — and replacing one without the other would have failed the same day.
- Appliance
- Commercial combi oven / steamer
- Brand & model
- Alto-Shaam CTC10-20E
- Location
- Glen Rock, NJ — commercial kitchen
- Symptom
- Unit completely dead, will not power on
- Found
- Shorted display board, burned-out low-voltage DC power supply
- Repair
- Both parts replaced together, oven run and verified
The call
The kitchen gave us the simplest description there is, and the least useful one: the oven was dead. No display, no indicator lights, nothing at all when the power button was pressed.
On a combi oven that is not a minor fault. It is the piece of equipment the prep schedule is built around, and there is no working around it for a service.
What we found

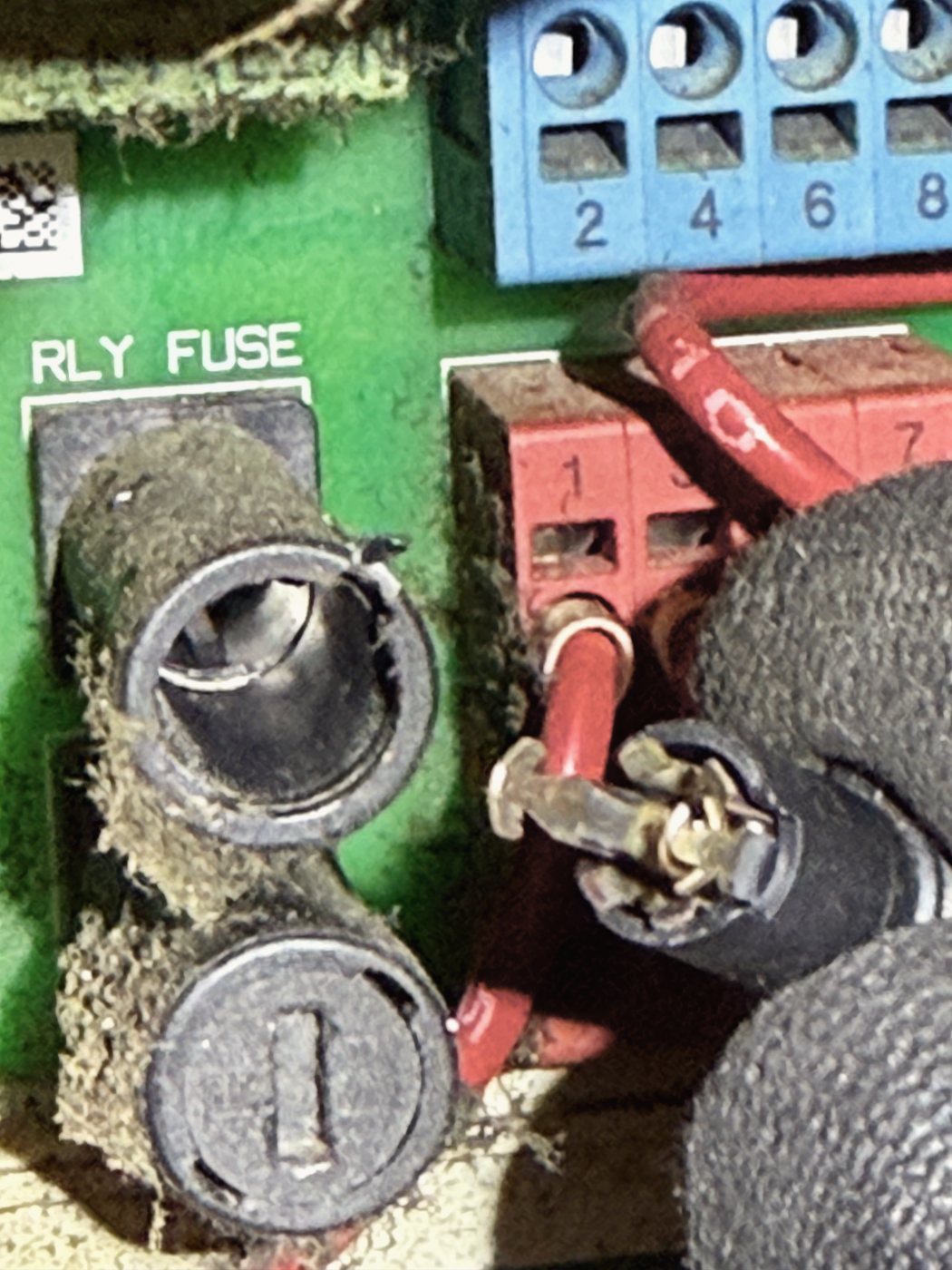

A machine showing nothing at all gives you no error code to start from, so you work backwards along the supply instead: incoming power, the control transformer, the fuses, the low-voltage supply, and finally the boards running off it. Slower than reading a code off a screen, but it is the only honest way through a dead panel.

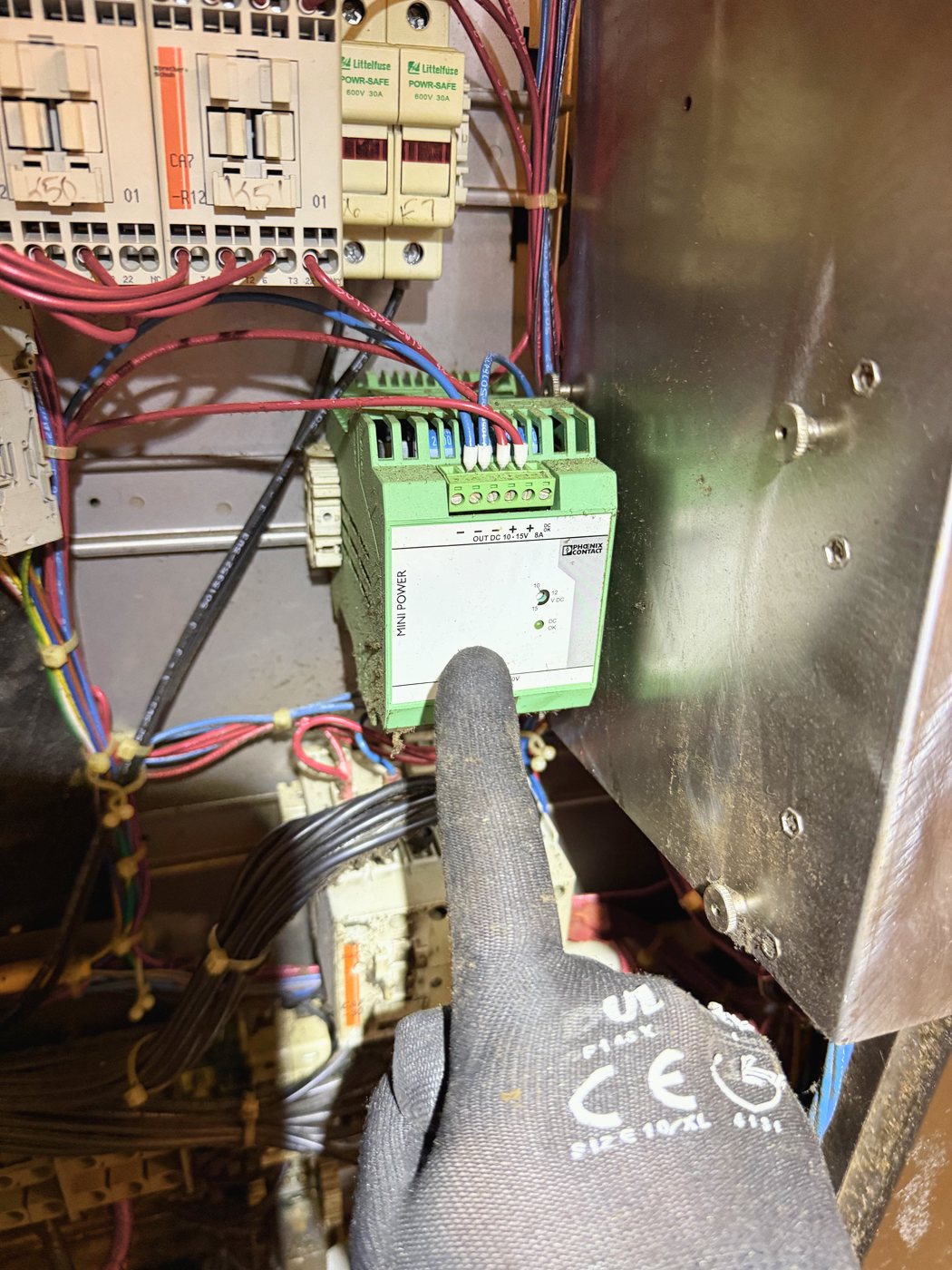

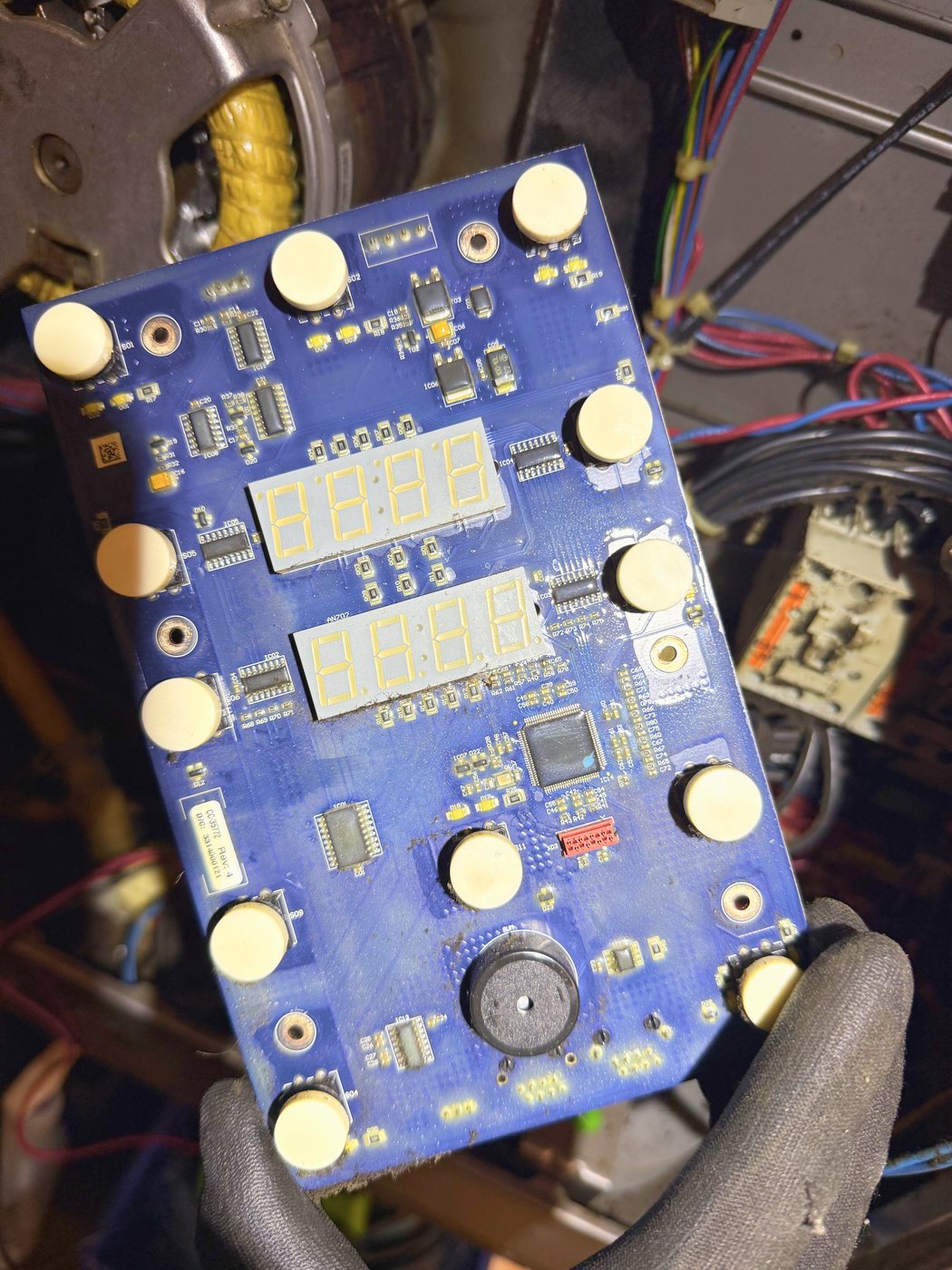

The low-voltage DC supply that feeds the control side was burned out. The display board — the panel carrying the two seven-segment readouts and the touch keys — had shorted. Those two findings belong together: a short on the board is a load the supply was never built to carry, and a supply asked to carry it does not survive the experience.
Which is why both were replaced. Fitting a new supply and leaving the shorted board in place would have destroyed the new part at the first power-up — the same dead oven a day later, with another part on the invoice. On a panel that shows nothing, the temptation is to replace what is visibly burned and stop there. The component that caused it is the one that decides whether you are coming back.

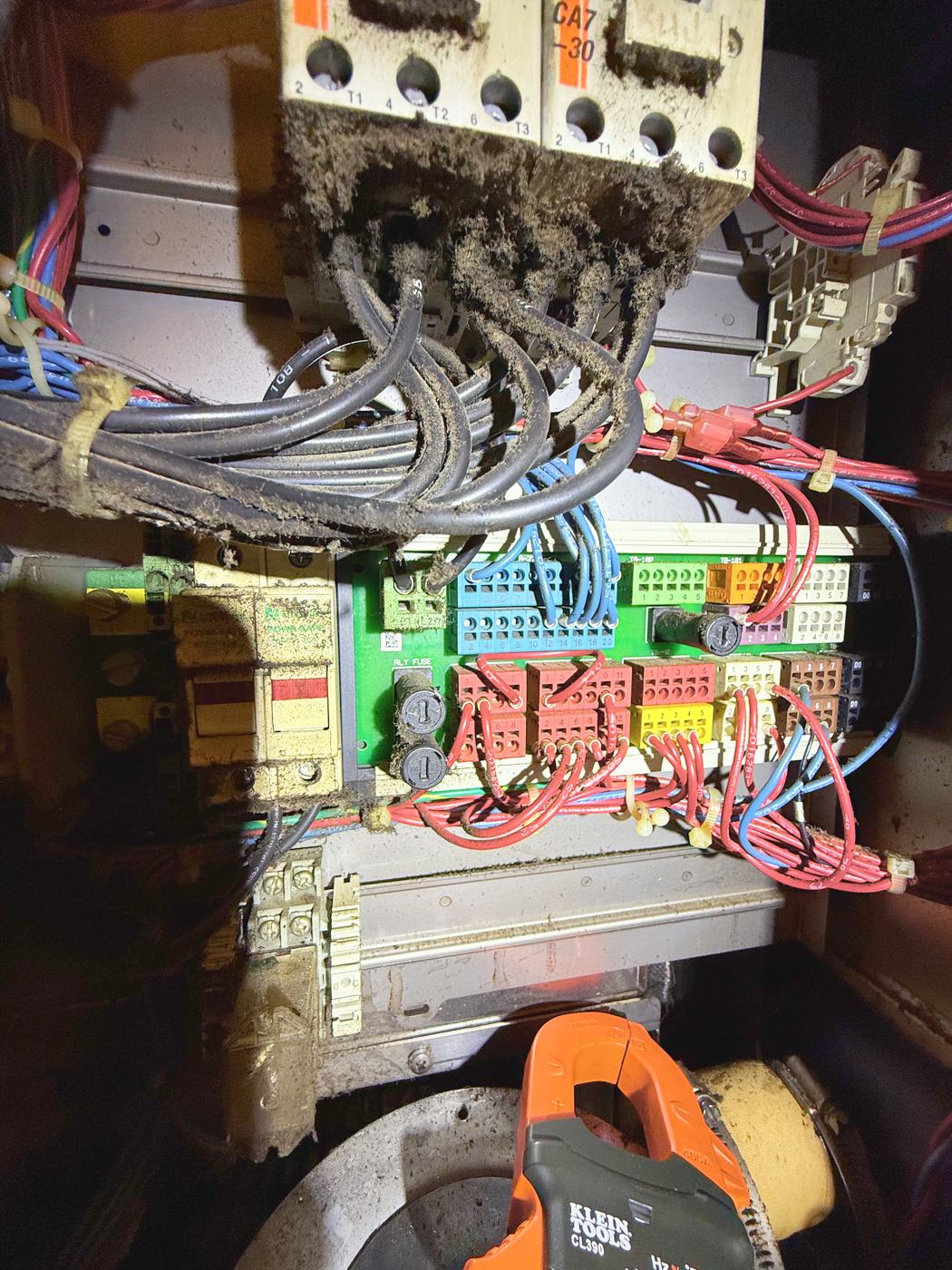

One thing worth showing, because it is normal in a commercial kitchen and almost never photographed: every contactor, terminal block and cable bundle inside that control cabinet was carpeted in grease-laden dust. That is the environment control electronics actually live in behind a hot line, and it is a good argument for opening a panel and looking before a machine starts misbehaving rather than after.
The fix
Replaced the low-voltage power supply and the display board with the correct parts for the model.
Then tested it properly. The display came up and responded to the keys, and we ran the oven to confirm the controls were actually driving it rather than just lighting up — on this kind of equipment those are two different things, and only one of them gets the kitchen through service. Unlike a refrigerator, an oven answers immediately, so there was no reason to leave anything unverified.
